SHIELDED BOX FOR EMI ANALYSIS
Testing System |
Inside Appearance |
Measurement Equipment |
|---|---|---|
 |
 |
 |
We offer an All-In-One shielded box for essential EMI testings.
The shielded box is suitable for conducted emission testing and radiated emission testing.
It is purposed for R&D of customer's EUT instead of buying expensive shielded rooms or anechoic chambers.
Specifications |
|
|---|---|
What you can test |
Conducted emssions/Radiated emissions/Near field |
Shielded Box |
|
Dimensions |
Ext. Dimensions: 1250mm(W)x1250mm(D)x2500mm(H) |
Int. Dimensions: 1206mm(W)x1206mm(D)x2404mm(H) |
|
Shielded Door |
Clear opening: 800mm(W)x1900mm(H) |
Floor arrangement |
Ground plane |
Connector panel |
N, BNC, SMA |
Service outlet |
AC100V (Inside and Outside) |
Power line filter |
For AC outlet inside the room (DC filter available) |
Conducted emissions | |
Frequency Range |
9kHz - 30MHz |
EUT voltages |
Single phase 100V, Three phase 200V |
LISN specification |
AC LISN acc. CISPR16, 16A to 400A |
Options |
High voltage probe |
Radiated emissions |
|
Frequency Range |
30MHz - 1000MHz |
Antenna |
Wide band biconical antenna x 1 |
RF Path |
Wide band preamplifier (Gain=30dB typical) |
Near field measurement |
|
Probe |
Magnetic probe (300kHz - 100MHz) |
RF Path |
Wide band preamplifier (Gain=20dB typical) |
RF Switch Unit | |
System Unit |
Path switching, Preamplifier, RF filter inside |
Measurement Instrument and Software | |
Measurement Instrument |
Spectrum Analyzer |
Software |
Dedicated measurement software |
SHIELDED ROOM
- We offer various types of shielded rooms that are suitable for EMC tests, noise immunity, and R&D purposes.
- We design useful shielded rooms that are used for each EMC tests.
There are various disturbance RF signals around us; TV, mobile phones, Wireless LAN. In EMC measurement, those disturbance signals are unnecessary since it disturbs the measurements.
We design and offer various types of shielded rooms not only for EMC tests but also for R&D. Optionally, the shielded room can be combined with sound insulation chamber.

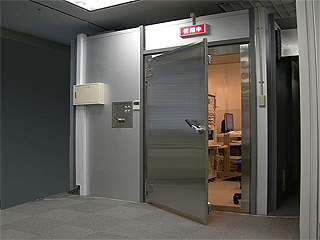

Shielded room / External view |

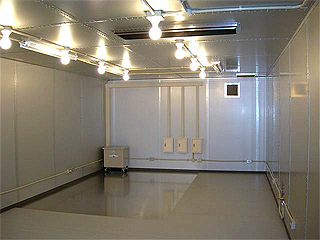

Shielded room / Internal view |
|---|---|
 |
 |
Compliant EMC test shielded room
Applicable standard |
|---|
CISPR22 conducted disturbance voltage tests |
IEC61000-4-2 ESD (Electrostatic discharge) |
IEC61000-4-4 Surge voltage tests |
IEC61000-4-5 Fast transient / burst tests |
IEC61000-4-6 Conducted immunity tests |
IEC61000-4-8 Magnetic field tests |
Special shielded room
Purpose of use |
|---|
EMC test system enclosure (ex. shielded room for power amplifiers） |
Sound test system |
Server rooms |
Welding chamber |
Please contact us from here for more details.
